Setting up O.N.G.E.K.I. 1.39

[laflegge]



This guide is obsolete now. @meru_golang uploaded 1.40 fullpack (for which I am immensely grateful) which includes artemis portable and a readme.txt which says it all.







Get the Ongeki 1.39 FullPack
https://drive.google.com/file/d/1bgONt9moYYLFV34rbV9DLwMhI2YU5S9Y/view?usp=sharing
(thanks to @meru_golang for this great upload)



1. Best install this game on a drive from the root. For example d:\ongeki or e:\ongeki

Your mileage will change when putting it in subfolders like 'Program Files (x86)' and I noticed that this will create a subfolder in the amfs folder which prevents the bios from saving your settings.

If you like your games on 1 place -like I do- you can use a subst command to create a new 'root'

eg: SUBST I: E:"\Program Files (x86)\Ongeki 1.39\package-ongeki_1.39"  (this will create an 'I:' drive)



2. Get your ip-adres (ipconfig in command box) and it looks something like 192.168.x.y

Now change the following files
application.properties

remove the # before the two lines and set ip-adres
allnet.server.host=<your ip adres>
allnet.server.port=80



segatools.ini
[dns]
default=<your ip adres>

[keychip]
subnet=<your ip adres>



3. In order to make your card work (the one in the download made the game crash when using the aime card)
delete (or if you don't trust this action just rename it) the /data/db.sqlite file

Now start aqua by running start-aqua.bat (as administrator): This will create a new fresh db.sqlite file
Now also start game by starting start.bat (as administrator)

The first time takes longer as it will regenerate the data_cache.bin. It seems that booting stops with the second line flashing.

It will take up to 5 minutes on a SSD drive for regenerating this data_cache.bin file so be patient.

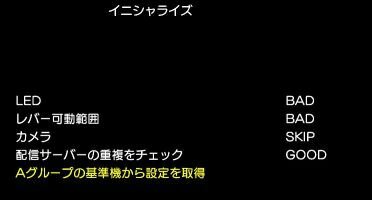

4. Then when it does the bios checks it will stop and start flashing on the 5th entry in the bios start screen
(Also use google translate on your phone)
This entry translates roughly as 'get settings from reference machine A'

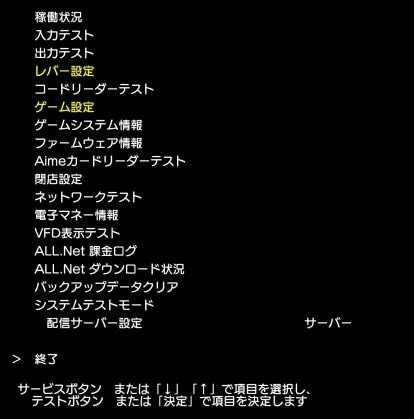

Now enter the service menu (default '1' and you can also use '1' to navigate). The default 'enter' button = 'J'

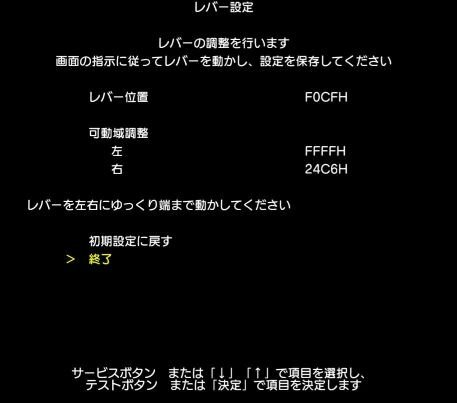

Navigate to 4th menu from top: "lever settings" and 'enter' the settings.



Assuming you are going to use your mouse as 'lever' : Move your mouse left to right to calibrate
When finished exit this screen (last option).

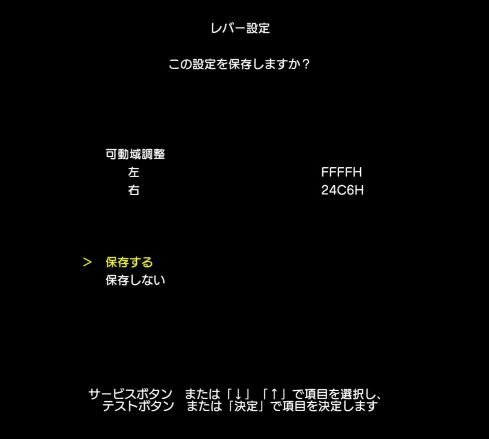

And in the next menu go 'up' to save these settings and exit the next screen

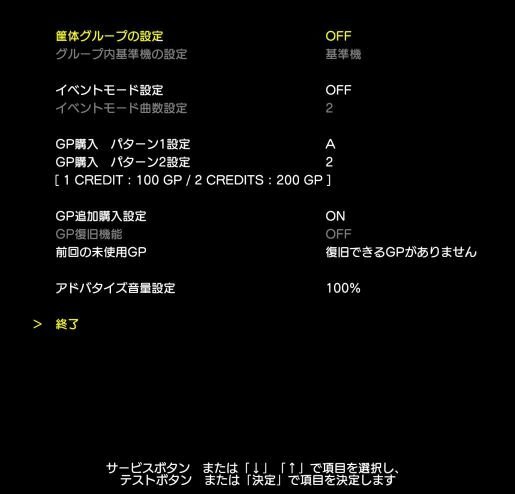

Navigate to 6th menu from top : "Game Settings" and change the first setting from A to OFF

You can also play around with the options for credits.

Exit this menu (last option) with the 'J'

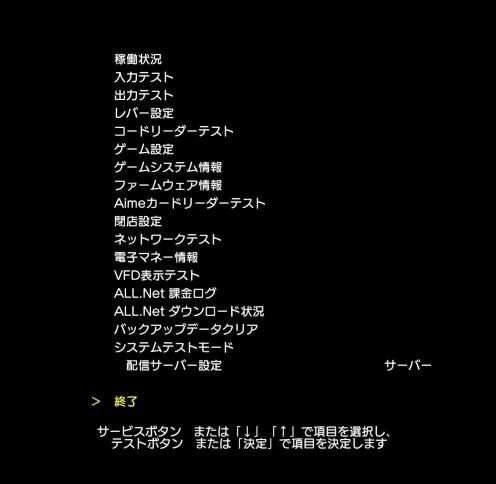

Now go to last entry to exit the bios settings.

This should start the game.



Now press and hold the <ENTER> key to register a new card.

Default the middle row of your keyboard (ASD JKL) will handle the buttons, your mouse will handle the lever and mouse left and right clicks the sides.

You can change the button assigment in segatools.ini



Issues and possible solutions

• Booting stops flashing on the first line without going forward.

          in config_common.json under the line allnet_accounting change it to false.



• The bios settings are not saved so next time you need to calibrate again and set the game settings.

           You probably have the game on a folder and/or drive with subfolders.



• The game crashes when you attempt registering/using the aime card.

           Do not go into the blue button menu but just swipe your card right away.



if you really want to have the arcade experience build your controller https://nananana.net/nageki-en/











Modifié le 30 décembre 2023 par laflegge

[Reko2k3]

Im sure I did everything right yet its just says this
its on my c drive and everything

[gasabbath]

I am using the latest segatools build and aqua server version 0.0.47 and I stuck at the begining.

The cmd says: Unity: Loaded amdaemon_api.dll



The thing is that ther game works with my older version of segatools.



Thanks in advance.







[Samael1]

Is there a close/exit input I can put in segatools.ini to close the game with the escape button? I got everything working, but have to ALT-F4 to close, and seeing as I use an arcade cabinet with no keyboard, I set everything to close with "Esc."



Also, it'll be a while before I set up a tate cab, and while the game itself displays naturally in landscape, the bios cuts off a big section of the screen (top 6 options in the main menu). Any fix for this so I can see what I'm calibrating in the test menu would be appreciated. Thanks.



Modifié le 8 septembre par Samael1
