[Emu] Hypseus Singe (SDL2) : 64bit 4k Daphne Emulator (Windows, Mac & Linux)

[xxOToTOxx]

1 hour ago, Spaced Ace said:

Will Dragon's Lair and Space Ace work with the arcade cabinet scoreboard?



Depends which type of hardware scoreboard you have.



There is code in the source to work with the USB scoreboard supplied by Cambridge Arcade, it is not enabled by default.



https://github.com/DirtBagXon/hypseus-singe/commit/22b13e416d6941db99246780f707213427ad0f27



The code for the original parallel port interface (those still exist correct?) is still unaltered in the source code and active, however I do not have the ability to test it.





Modifié le 5 janvier 2022 par xxOToTOxx

[xxOToTOxx]

Hypseus 2.8 Release - Daphne VLDP 16bit to 32bit Upgrade



This release of Hypseus will remove the previous 65535 frame limit on MPEG2 video files within Daphne and Singe.



The release with allow Hypseus to support the outstanding Singe 2 games:













Windows release 2.8.0: https://github.com/DirtBagXon/hypseus-singe/releases/tag/v2.8.0



Dragon's Lair TV Show: https://mega.nz/file/o9lACZaL#f_w2NrJyLxsST5ErwzDfOknm8t6RihjpdouvO6FNAtE

Princess Mononoke: https://mega.nz/file/RsVAVRTa#QASLJYImnjf_6f3XBPwK3K1LxJy_gGKgAhkTY1c0e-A

Sucker Punch: https://mega.nz/file/AhdQDTJD#KYqH1JmaWwSLrvmwDQNZXyzqo9wNRBgqSCBjJ4yYaSA

Tron: https://mega.nz/file/loFW3ZYT#KvZoxnUb43qt70ix_mx-pBi6ynFjWScNZYr3rLt7194







Modifié le 24 janvier 2022 par xxOToTOxx

[Hoagie]

Thanks for these, I will be trying on a new RetroPie setup.





Modifié le 12 janvier 2022 par Hoagie

[xxOToTOxx]





Special Edition TitanAE (Including the missing "Flight Scene"): https://mega.nz/file/Bs8SRSIR#tPlhGBTyLNbHInU22iQ6te1HEjUOqdT1Var6QrtzhoY



Requires Hypseus Singe v2.8.0: https://github.com/DirtBagXon/hypseus-singe/releases/tag/v2.8.0







Modifié le 24 janvier 2022 par xxOToTOxx

[xxOToTOxx]

11 minutes ago, Hoagie said:

Thanks for these, I will be trying on a new RetroPie setup.



You may have to downscale the resolution a little for the Pi. It may struggle at full 1080p.

[Moksi]

On 11-12-2021 at 4:39 PM, xxOToTOxx said:



Many thanks for all the help here, it's pretty hard when you don't have the hardware you need to test on



I will put that version as an experimental CRT edition on the main repo downloads.



As I said future SDL2 may improve this (PRESENTVSYNC for CRT improvements for instance), but unless someone wants to donate a CRT not sure I can go much further.....







Hello , I suddenly tested the Hypseus game Esh & it runs perfectly others too , Badlands framerate is perfect .

I did reinstall the crt emu drivers after i removed the magic mode which allows me to run HyperSpin on it.  Also i put the windows resolution to 640 by 480.



I think i had a higher resolution enabled with the magic mode , i think it had something to do with it why it ran laggy

Really happy that i can play 4k HD quality on the CRT , it really looks like the real thing

[xxOToTOxx]

4 hours ago, Moksi said:

Hello , I suddenly tested the Hypseus game Esh & it runs perfectly others too , Badlands framerate is perfect .

I did reinstall the crt emu drivers after i removed the magic mode which allows me to run HyperSpin on it.  Also i put the windows resolution to 640 by 480.



I think i had a higher resolution enabled with the magic mode , i think it had something to do with it why it ran laggy

Really happy that i can play 4k HD quality on the CRT , it really looks like the real thing



Excellent news, another item from the "TODO"  gone.



I assume you needed to use `-novsync` on v2.8 ?   Or the patched binary with VSYNC removed ?



Or was that not the issue in the end?







[Moksi]

I still had the last version (v2.6) i think which we tested, i need to check what it does with a new fresh install (v2.8)

will let you know

[Moksi]

On 25-1-2022 at 9:15 PM, xxOToTOxx said:



Excellent news, another item from the "TODO"  gone.



I assume you needed to use `-novsync` on v2.8 ?   Or the patched binary with VSYNC removed ?



Or was that not the issue in the end?







I downloaded & tested a clean v2.8.0 install & it ran the games without any issues

[Hyperscorpio]

I really want is cube quest and those new future LD are going to be released on mame. Someone please try to rip off and make them play on daphne, this emulator have potencial for quantity, i do not care about quality, the normal vhs record is good enough to play it.

Here's a nother suggestion for a LD Game.



Modifié le 26 février 2022 par Hyperscorpio

[Hoagie]

This looks interesting:





The guy is writing a frontend:



https://github.com/cdurbin1970/HypseusFE







[xxOToTOxx]

On 8/27/2022 at 11:43 AM, Hoagie said:

This looks interesting:





The guy is writing a frontend:



https://github.com/cdurbin1970/HypseusFE









Yep, it's still very early development, but hoping for great thing here



It will not be trivial writing a frontend for Daphne.





[ultimatepump]

Hey guys, so I got the whole set but I cannot figure out how to run Hypseus.   I can run Daphne Loader and thats it.  I want to try all these remasters.  Is there a GUI so I can play Daphne, Hypseus, Singe, and Action Max easily?

On 8/28/2022 at 3:52 PM, xxOToTOxx said:



Yep, it's still very early development, but hoping for great thing here



It will not be trivial writing a frontend for Daphne.





This looks great!  Any release?

[xxOToTOxx]

6 hours ago, ultimatepump said:

Hey guys, so I got the whole set but I cannot figure out how to run Hypseus.   I can run Daphne Loader and thats it.  I want to try all these remasters.  Is there a GUI so I can play Daphne, Hypseus, Singe, and Action Max easily?

This looks great!  Any release?



Follow the other thread from around here:



[ViRuS-MaN]

Hello
I'm writing this message because I'm starting with Hypseus to put my games Singe and then my games Daphne but I would like to do like Singe that is to say to have the folder of the game and in this folder to have the folder Cfg, Sounds, Video, overlays, script and fonts but here I managed to do it for 20 games but games like astroboy for example, I have the problem with the drawing like seeing a zero on the left in the middle or a zero above the button or in the bottom right see two white circle instead of seeing the head of astroboy (see screenshot).

So I would like to know if there would be a way to have an archive ready and I would only have to put the m2v and ogg files and if there are full versions it would be even better.

Thanks in advance.

ps: it lacks a gui interface like Monkey or better ^^

[xxOToTOxx]

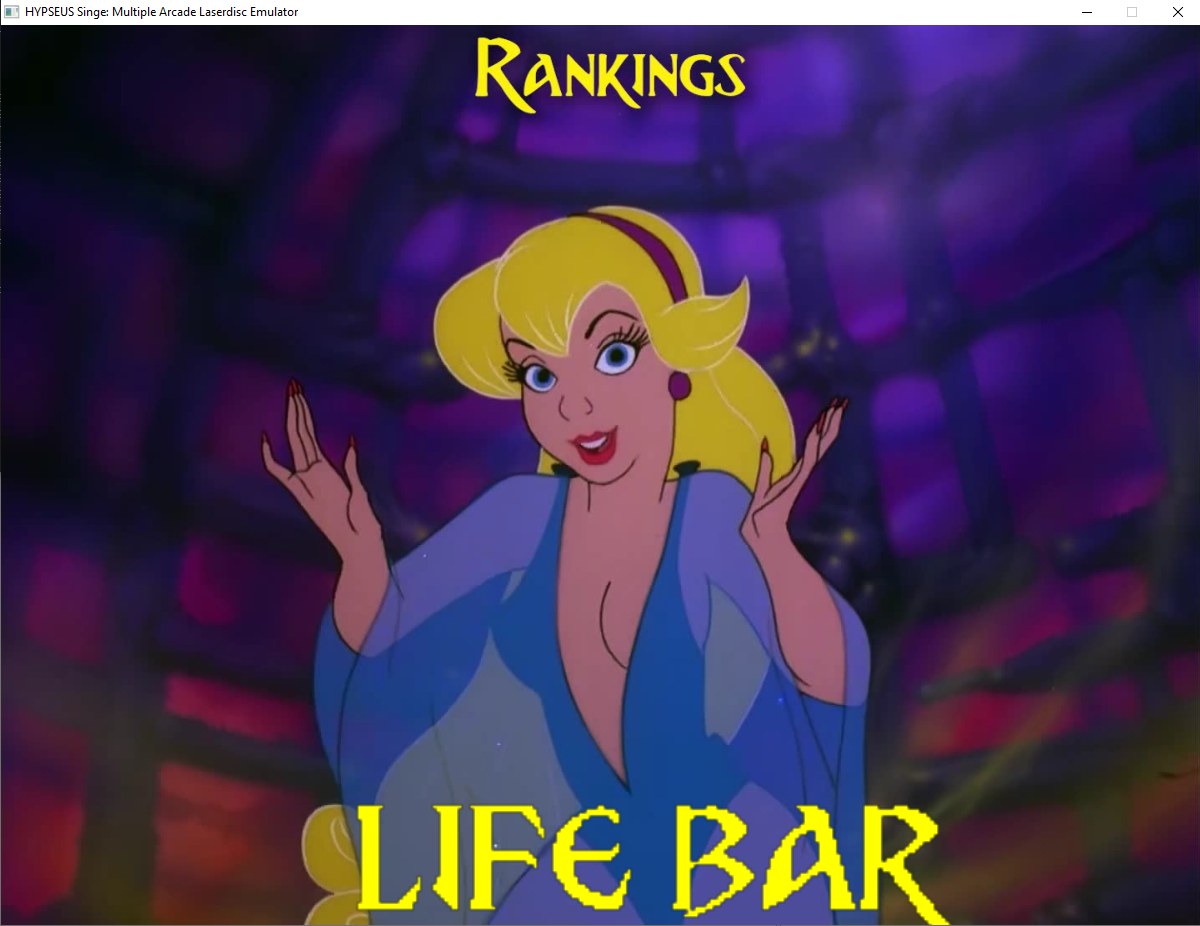

Looks like you have some broken sprite files. Using the repo files it should look like this:

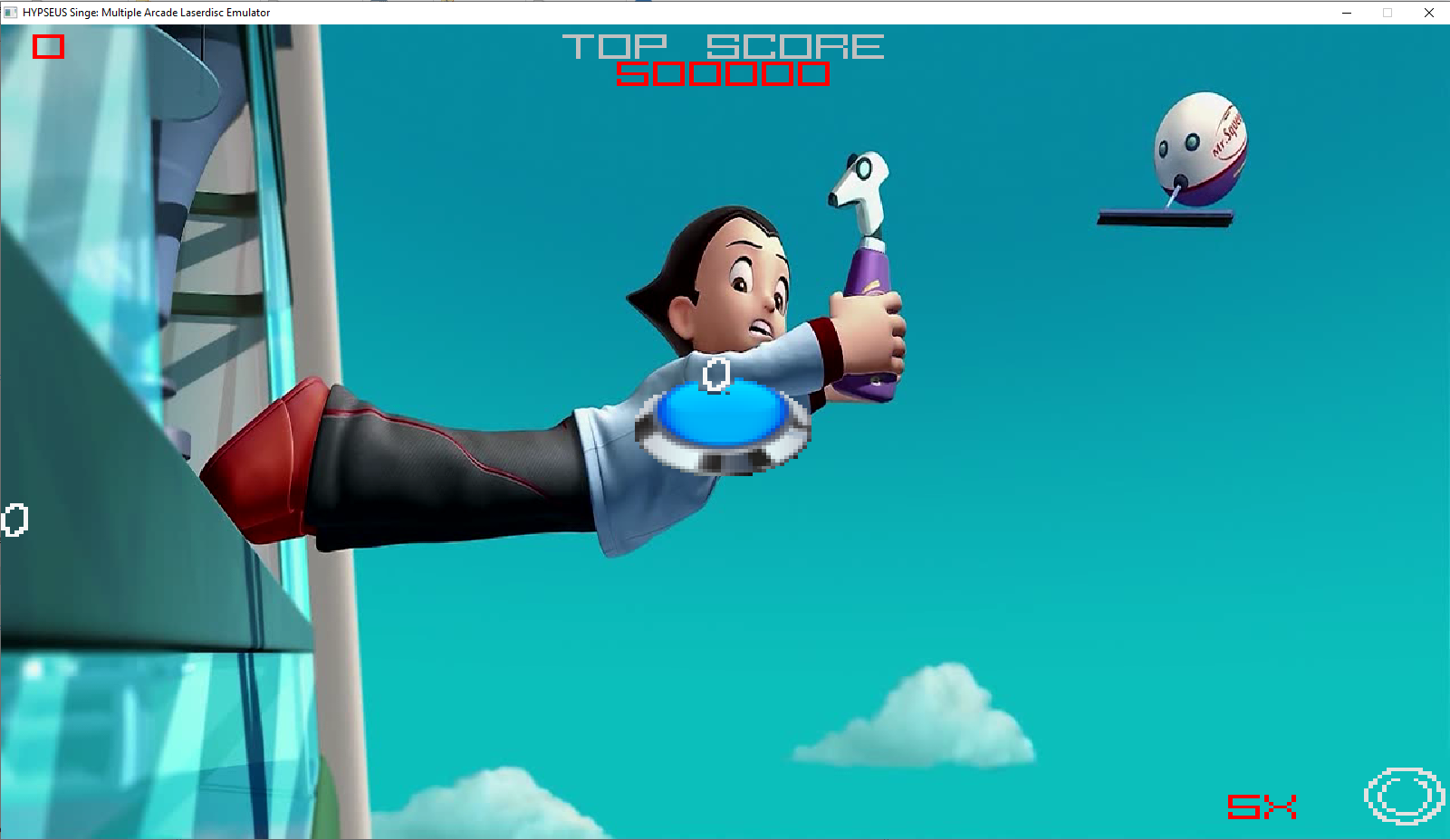

Using the Full Overlay (Singe 2) version it should look like this:





All the versions of the Singe LUA, sprites etc are in the repo here: https://github.com/DirtBagXon/hypseus_singe_data



There is no GUI at this point, as it's usually behind another frontend in RetroPie/Batocera/LaunchBox - but there is talk of a launcher app....



Edit: By your screenshot colors, I am guessing you also are running an old version of hypseus.



Update by just replacing the hypseus.exe from repo zip file.







Modifié le 2 mars 2023 par xxOToTOxx
Update hypseus.exe

[ViRuS-MaN]

i download the file

Hypseus.Singe-v2.10.2-win64.zip

hypseus_singe_data-2.10.2-1.zip

and

windows-batch-files-v2.10.2.zip



after that i unzip the folder framework and dl2e in my folder Z:\Emulateur\Hypseus Singe\singe

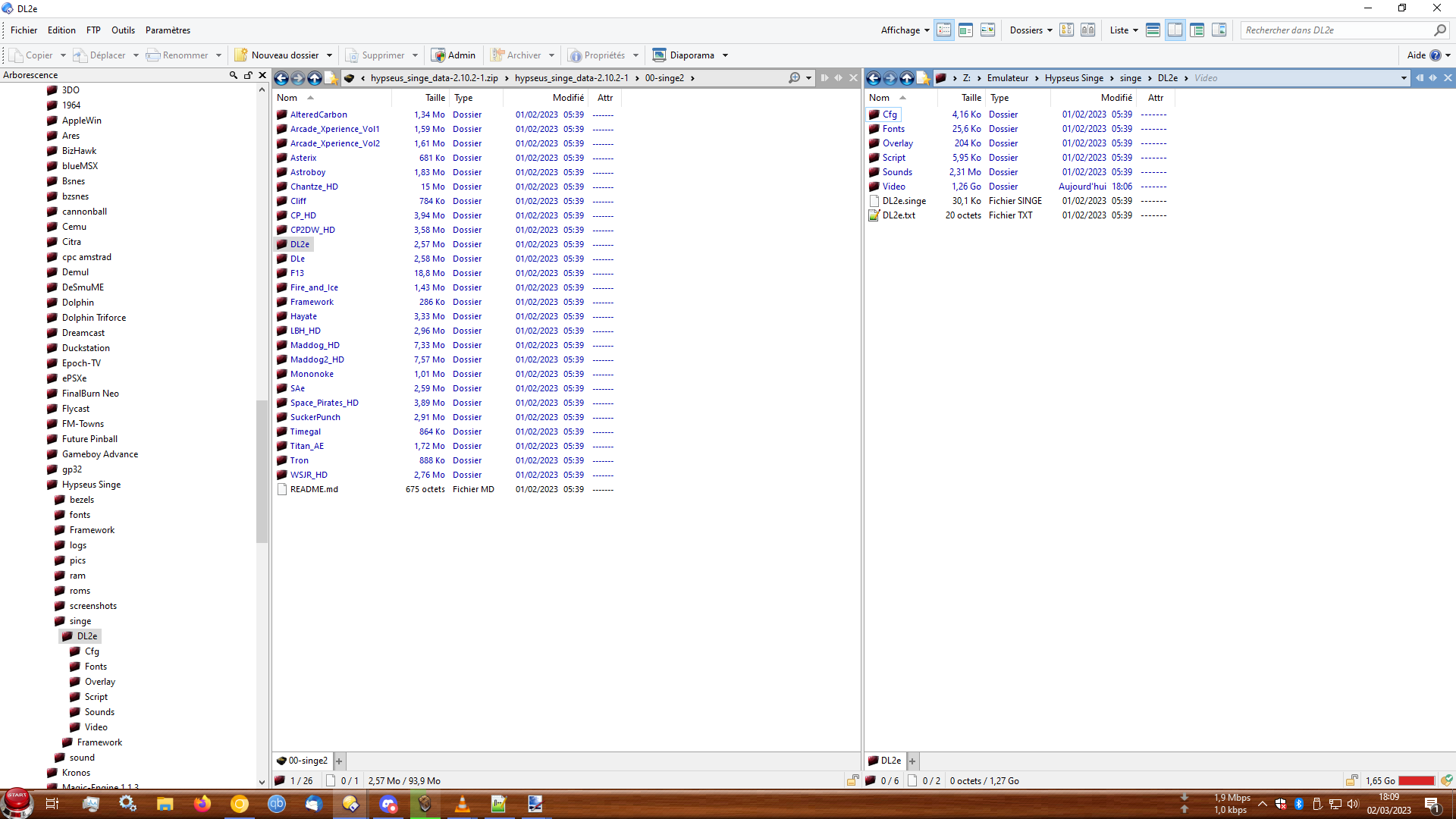

in my folder dl2e i have that

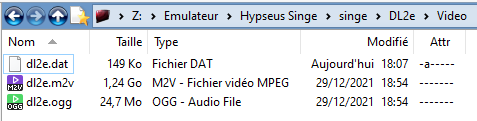

in my folder video i have that

after i launch i have the dl2e.dat it created

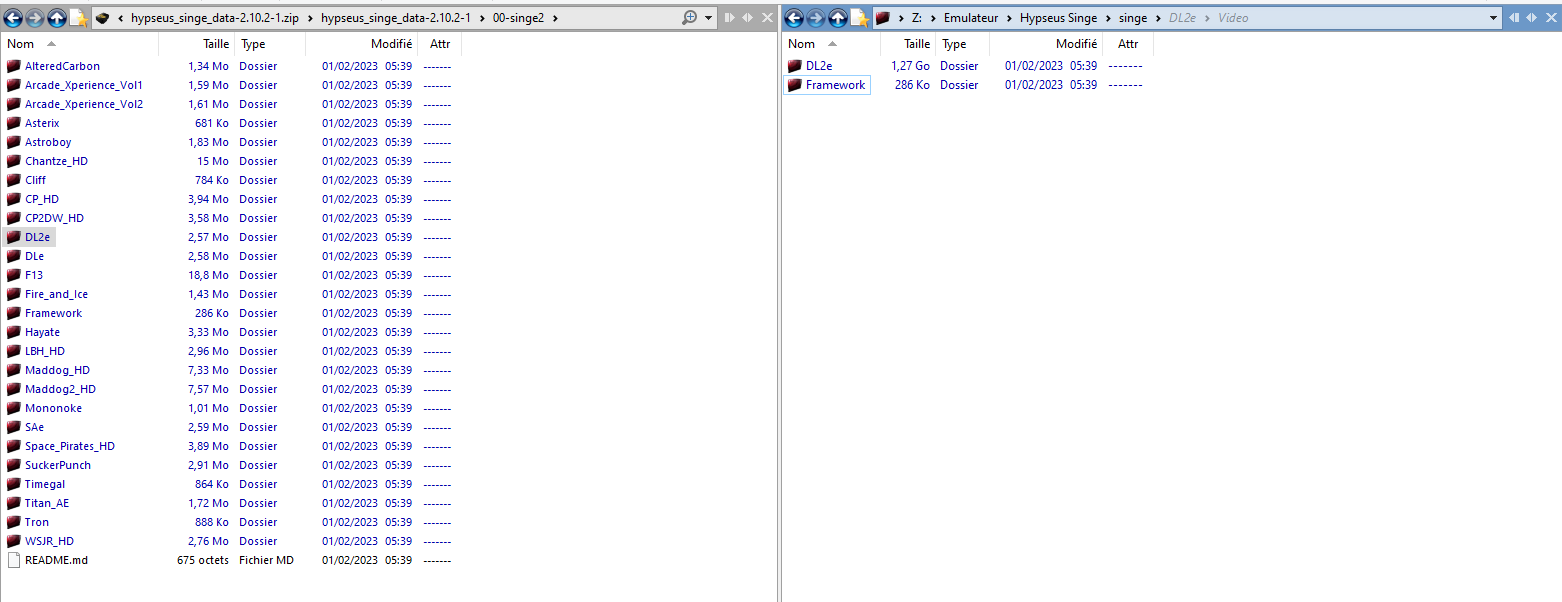

in my folder framework i have that

and when i play the game i dont see the hiscor and the arrows

i dont understand why , i have this buggs with all game , please help me



i my cmd i have that :



Z:\Emulateur\Hypseus Singe>hypseus.exe singe vldp -framefile singe\dl2e\dl2e.txt -script singe\dl2e\dl2e.singe -volume_nonvldp 5 -volume_vldp 20 -x 1200 -y 900 -gamepad
[version] Hypseus Singe: v2.10.2_x64
[console] Setting screen width to 1200
[console] Setting screen height to 900
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@332] Version v2.10.2_x64
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@336] Command line: hypseus.exe singe vldp -framefile singe\dl2e\dl2e.txt -script singe\dl2e\dl2e.singe -volume_nonvldp 5 -volume_vldp 20 -x 1200 -y 900 -gamepad
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@337] CPU : GenuineIntel || Mem : 6080 megs
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@338] OS : Windows 10 || Video : NVIDIA GeForce GTX 745
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@339] RGB2YUV Function: C
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@345] Line Blending Function: C
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@352] Audio Mixing Function: C
2023-03-02 18:26:05.091 INFO  [11900] [SDL_gamepad_init@548] Gamepad #0: Xbox 360 Controller connected
2023-03-02 18:26:06.342 INFO  [11900] [ldp_vldp::read_frame_conversions@1033] Framefile parse succeeded. Video/Audio directory is: singe/dl2e/Video/
2023-03-02 18:26:06.365 INFO  [11900] [printline@96] Starting Singe version 1.80
2023-03-02 18:26:06.457 INFO  [11900] [video::init_display@244] Viewport resolution: 1200x900

Z:\Emulateur\Hypseus Singe>PAUSE
Appuyez sur une touche pour continuer...

Modifié le 2 mars 2023 par ViRuS-MaN

[xxOToTOxx]

25 minutes ago, ViRuS-MaN said:

Z:\Emulateur\Hypseus Singe>hypseus.exe singe vldp -framefile singe\dl2e\dl2e.txt -script singe\dl2e\dl2e.singe -volume_nonvldp 5 -volume_vldp 20 -x 1200 -y 900 -gamepad
[version] Hypseus Singe: v2.10.2_x64
[console] Setting screen width to 1200
[console] Setting screen height to 900
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@332] Version v2.10.2_x64
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@336] Command line: hypseus.exe singe vldp -framefile singe\dl2e\dl2e.txt -script singe\dl2e\dl2e.singe -volume_nonvldp 5 -volume_vldp 20 -x 1200 -y 900 -gamepad
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@337] CPU : GenuineIntel || Mem : 6080 megs
2023-03-02 18:26:04.741 INFO  [11900] [reset_logfile@338] OS : Windows 10 || Video : NVIDIA GeForce GTX 745
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@339] RGB2YUV Function: C
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@345] Line Blending Function: C
2023-03-02 18:26:04.742 INFO  [11900] [reset_logfile@352] Audio Mixing Function: C
2023-03-02 18:26:05.091 INFO  [11900] [SDL_gamepad_init@548] Gamepad #0: Xbox 360 Controller connected
2023-03-02 18:26:06.342 INFO  [11900] [ldp_vldp::read_frame_conversions@1033] Framefile parse succeeded. Video/Audio directory is: singe/dl2e/Video/
2023-03-02 18:26:06.365 INFO  [11900] [printline@96] Starting Singe version 1.80
2023-03-02 18:26:06.457 INFO  [11900] [video::init_display@244] Viewport resolution: 1200x900

Z:\Emulateur\Hypseus Singe>PAUSE
Appuyez sur une touche pour continuer...





So close, but you didn't see this in repo: ?

For the Singe 2 games you need to add '-set_overlay full' to your .bat file









Modifié le 2 mars 2023 par xxOToTOxx

[ViRuS-MaN]

il y a 13 minutes, xxOToTOxx a dit :





So close, but you didn't see this in repo: ?

For the Singe 2 games you need to add '-set_overlay full' to your .bat file









Thank You now it s ok , only need to convert all mp4 for all games Singe and after i show for daphne games ^^



and i have a gui for the good emulator

[xxOToTOxx]

7 minutes ago, ViRuS-MaN said:

Thank You now it s ok , only need to convert all mp4 for all games Singe and after i show for daphne games



For Daphne, it is easier:



https://www.emuline.org/topic/2301-arcade-pc-hypseus-singe-64bit-4k-daphne-integrated-bezels/?do=findComment&comment=143185



Don't forget to add bezels







[Alescapo]

sorry but where can i find the hypseus_singe_data-2.10.2-1.zip file?

[xxOToTOxx]

44 minutes ago, Alescapo said:

sorry but where can i find the hypseus_singe_data-2.10.2-1.zip file?



https://github.com/DirtBagXon/hypseus_singe_data/releases

[ViRuS-MaN]

Hello

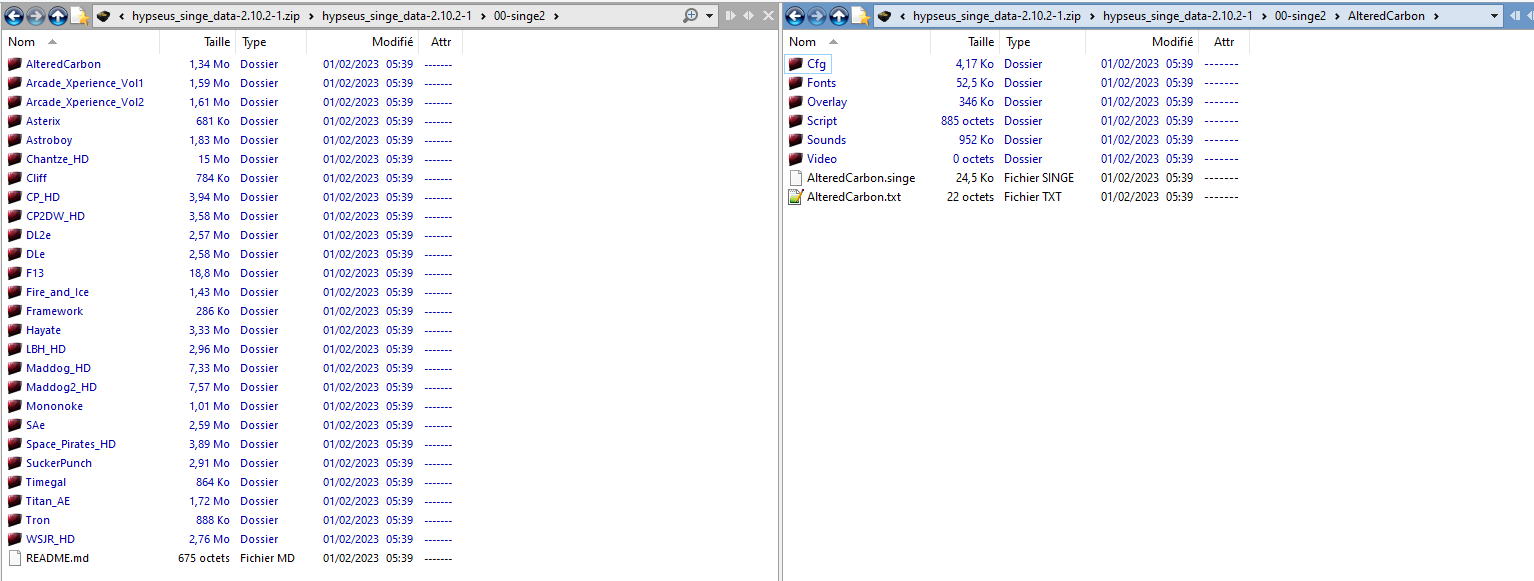

I downloaded the archive hypseus_singe_data-2.10.2-1.zip and in the folder 00-singe2 there are 26 games converted as on the image, I would like to know if there are other games converted as these 26 games and, I would like to have the same thing for Daphne because I find it much cleaner.Thank you in advance

In the other folders of the archive all the files are mixed and it's not clean I think see the image

Thank You

[xxOToTOxx]

Only the Singe games that Karis converted are structured in folders. All the others are in the original "flat folder" format.



They can be converted by anyone to folders, maybe by you?

They work in exactly the same way.



For Daphne the format is simple, and tidy, as only roms, video and audio files. See here:



C:\
|-- Hypseus Singe
|    |
|    |
|    +-- roms
|         +-- dle21.zip
|         +-- sae.zip
|    |
|    |-- vldp
|    |    |-- lair
|    |        +-- lair.txt
|    |        +-- lair.m2v
|    |        +-- lair.ogg
|    |
|    |    |-- ace
|    |        +-- ace.txt
|    |        +-- ace.m2v
|    |        +-- ace.ogg



[ViRuS-MaN]

For daphné it s ok i have 17 games already ready to play for hypseus and for singe game i have 28 games ok now i wait for the others games because i try to convert the games but it s complicate for me ^^

[Hegel]

Great work!

Modifié le 1 avril 2023 par Hegel
